Technical Specifications: High-Speed Full-Servo Baby Diaper Machine

1. Main Function Features:

• Drive & Control: Full servo motor drive system, managed by a high-precision PLC with a user-friendly touch screen interface.

• Pulp Processing: Equipped with a high-speed mill (teeth-like crusher) for excellent fiberization.

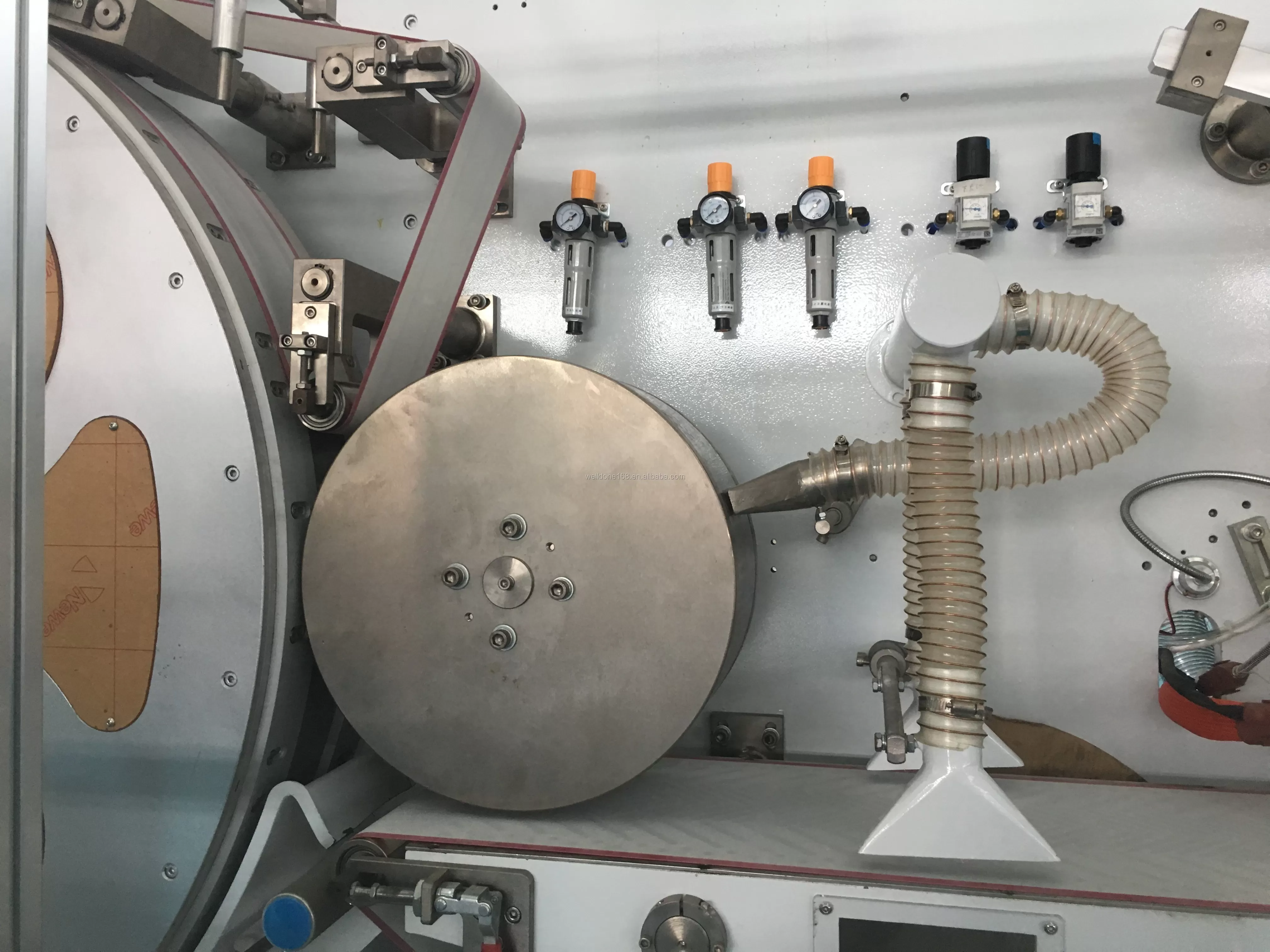

• Core Forming: Utilizes web-wheel molding to ensure a uniform and consistent absorbent core.

• SAP Application: Precision SAP (Super Absorbent Polymer) dosing system with real-time amount control.

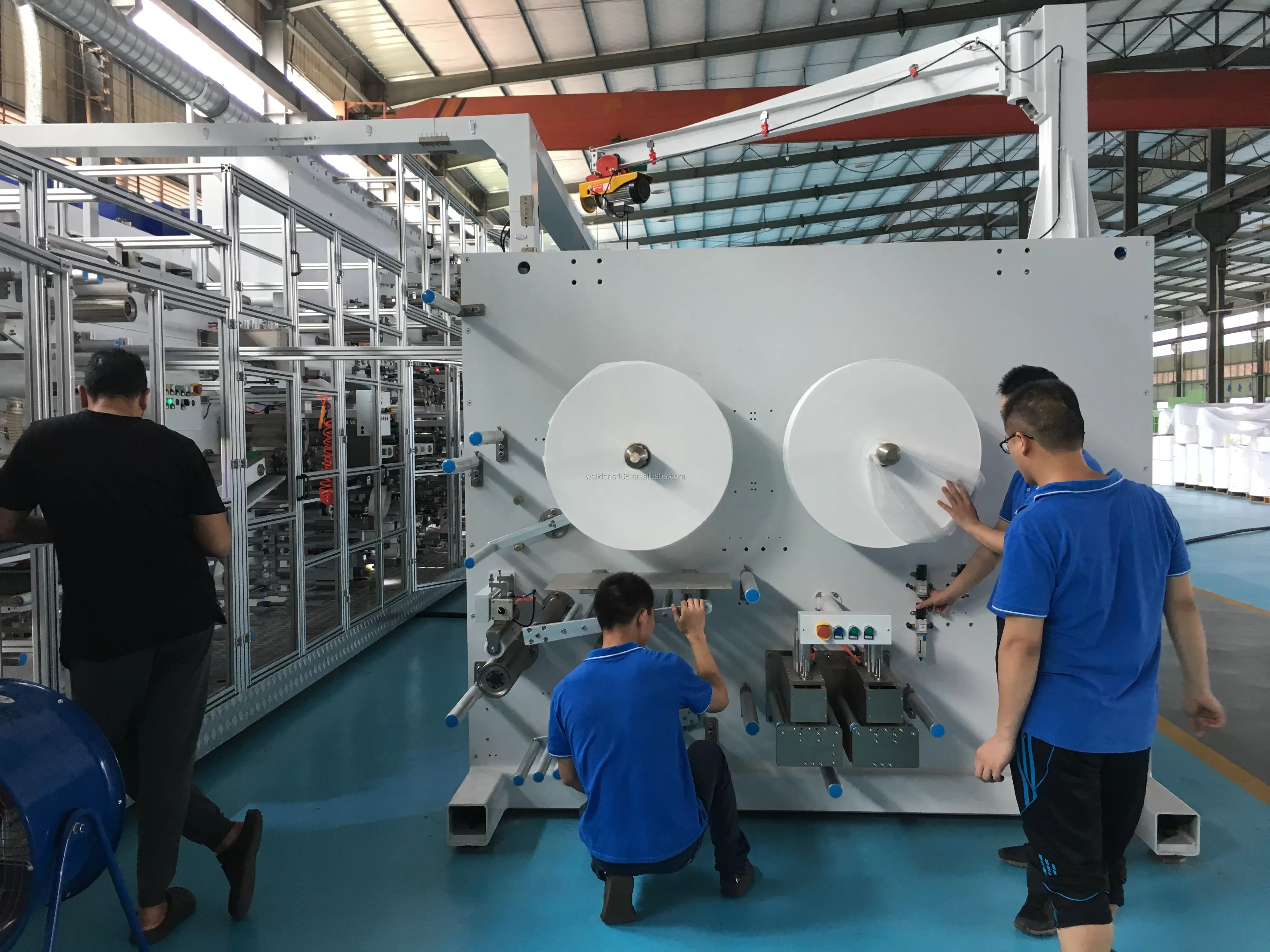

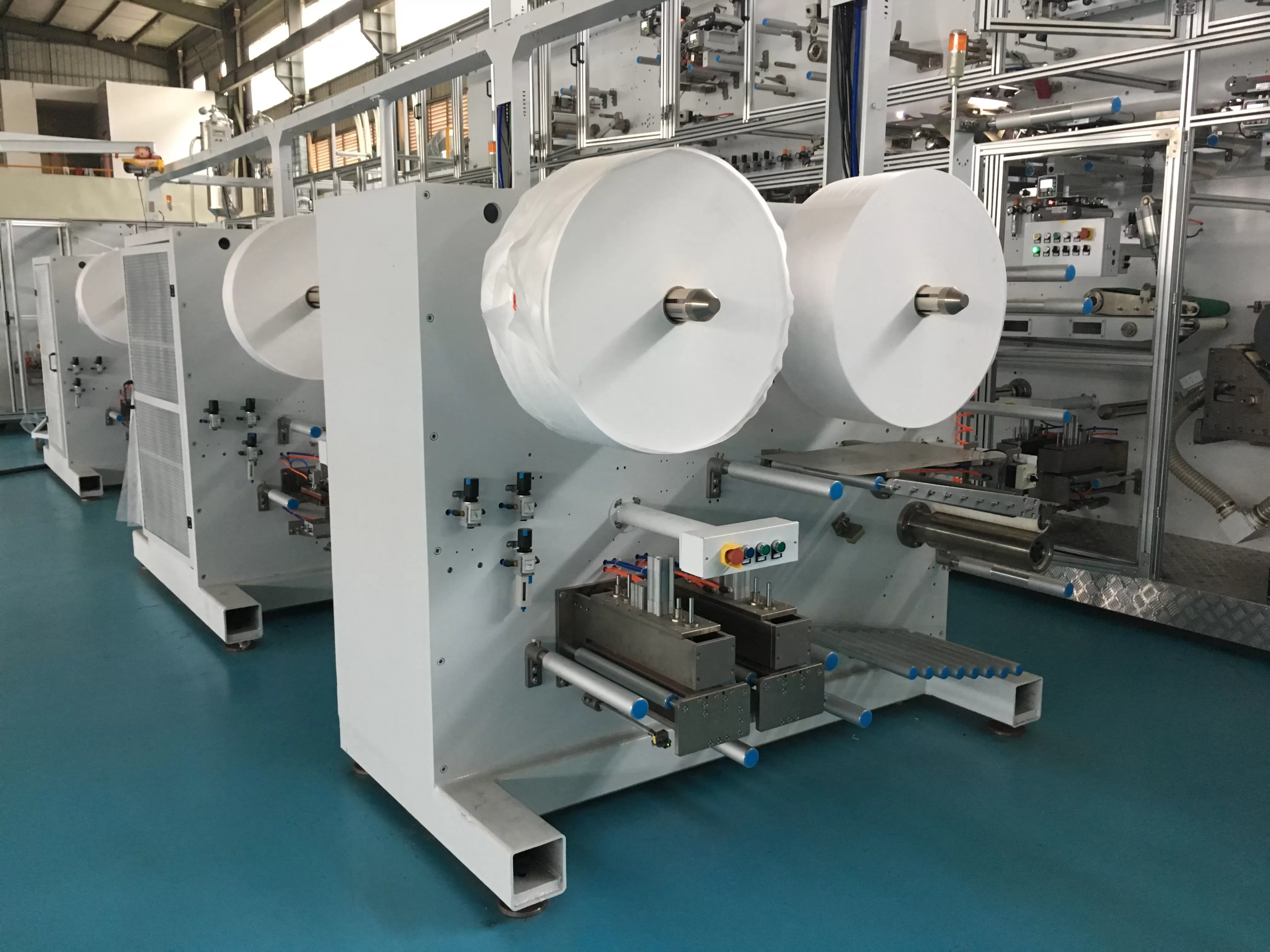

• Automation: Features servo-driven unwinding, automatic tension control, and non-stop auto-splicing for all major raw materials.

• Quality Control: Includes an automatic rejection system for defective products and an auto-detection & alarm system for material exhaustion.

• Operational Efficiency: Allows for on-the-fly (no-stop) phase adjustments during production.

2. Main Technical Parameters:

• Design Speed: 500 pcs/min

• Stable Production Speed: 400 - 450 pcs/min

• Product Sizes: 4 sizes (S, M, L, XL - customizable)

• Finished Product Qualification Rate: ≥ 98%

• Overall Efficiency: ≥ 88%

• Power Supply: 380V, 50Hz, 3-Phase 5-Wire System

• Installed Power: ≥ 260 KW

• Required Air Pressure: 0.6 - 0.8 MPa

• Machine Dimensions (L*W*H): Approx. 30m x 3m x 3m
