Technical Data Sheet
Fully Automatic Wet Wipe Production Line (Model: WW-A5000 High-Speed)

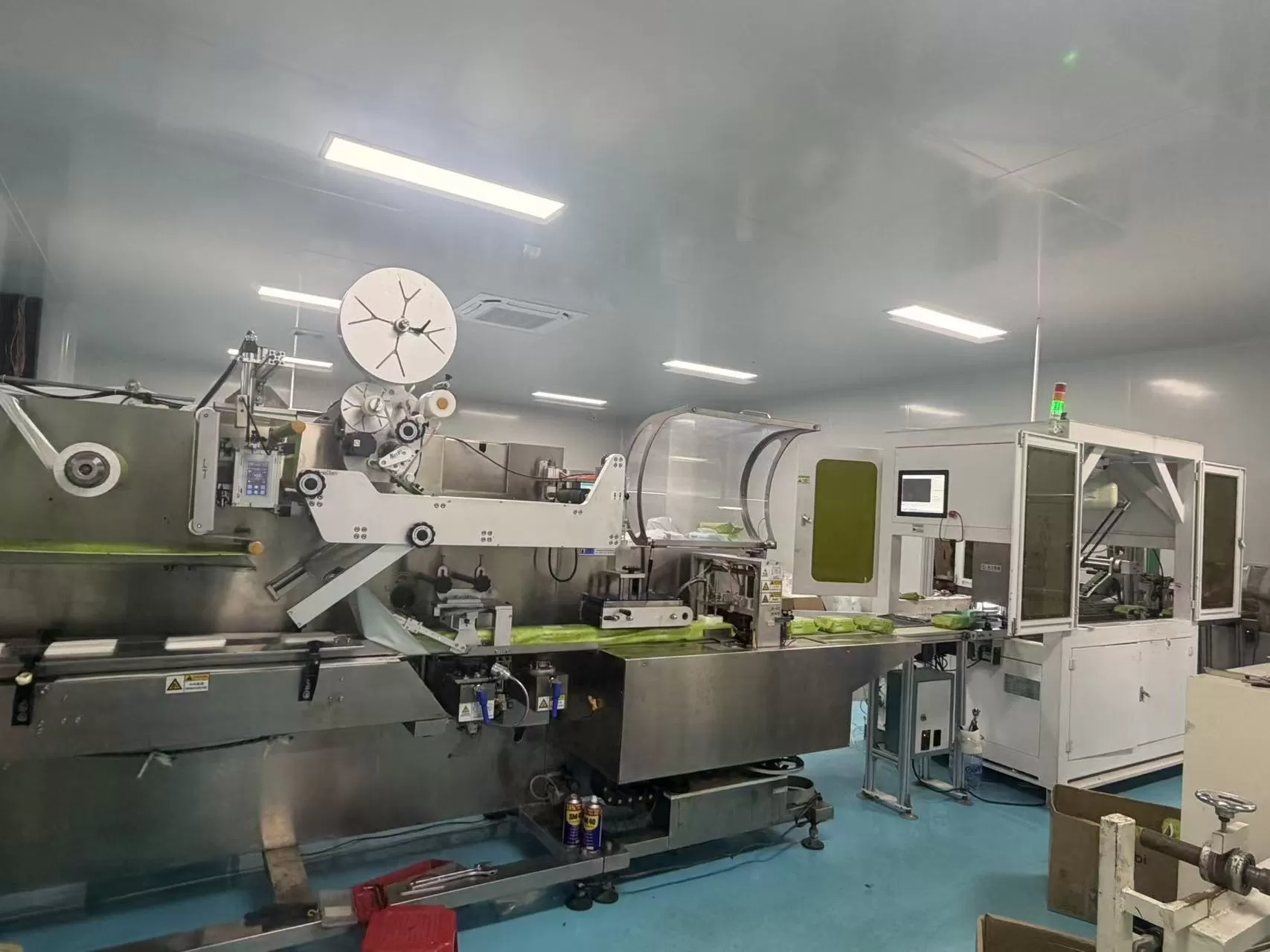

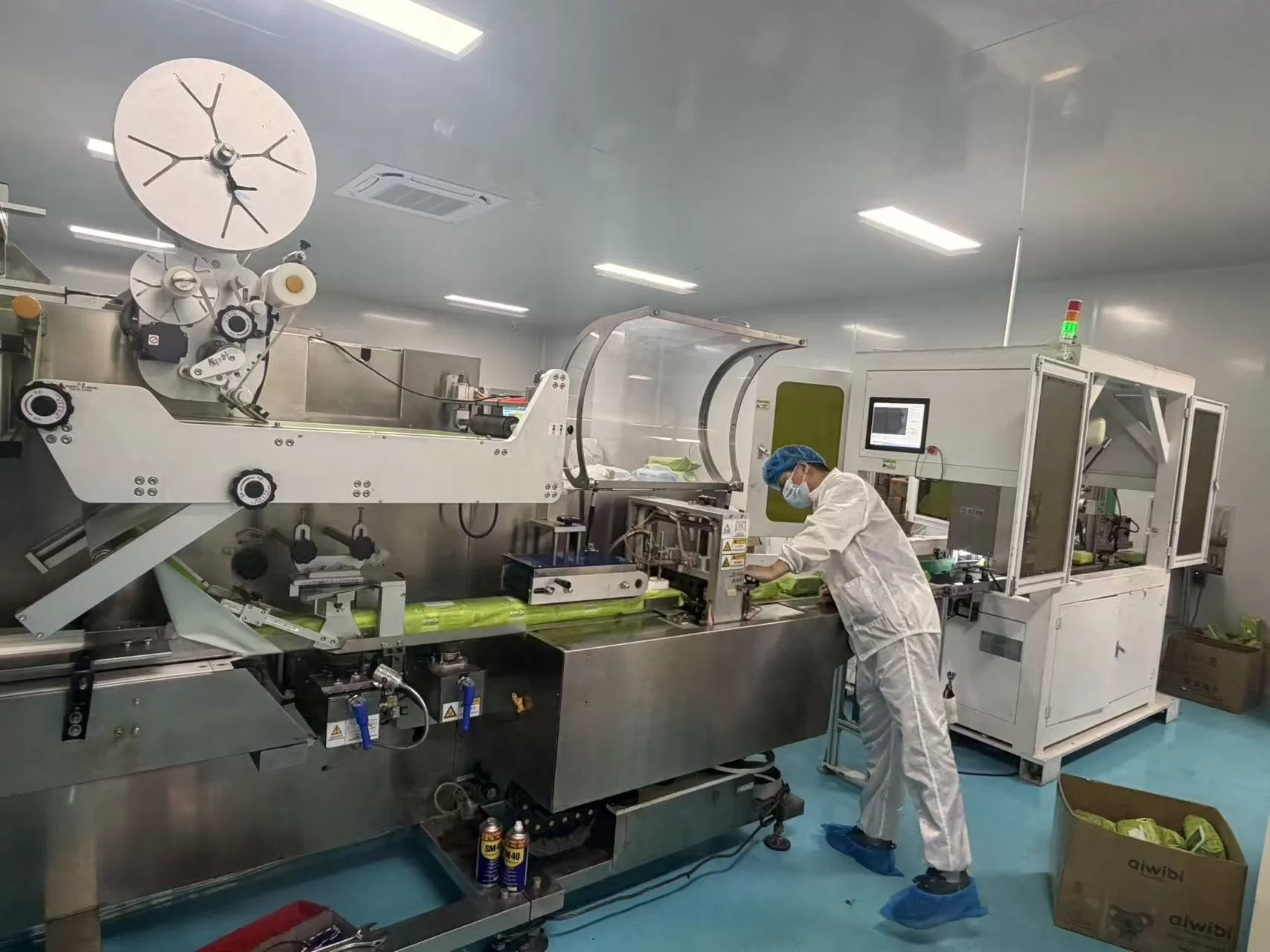

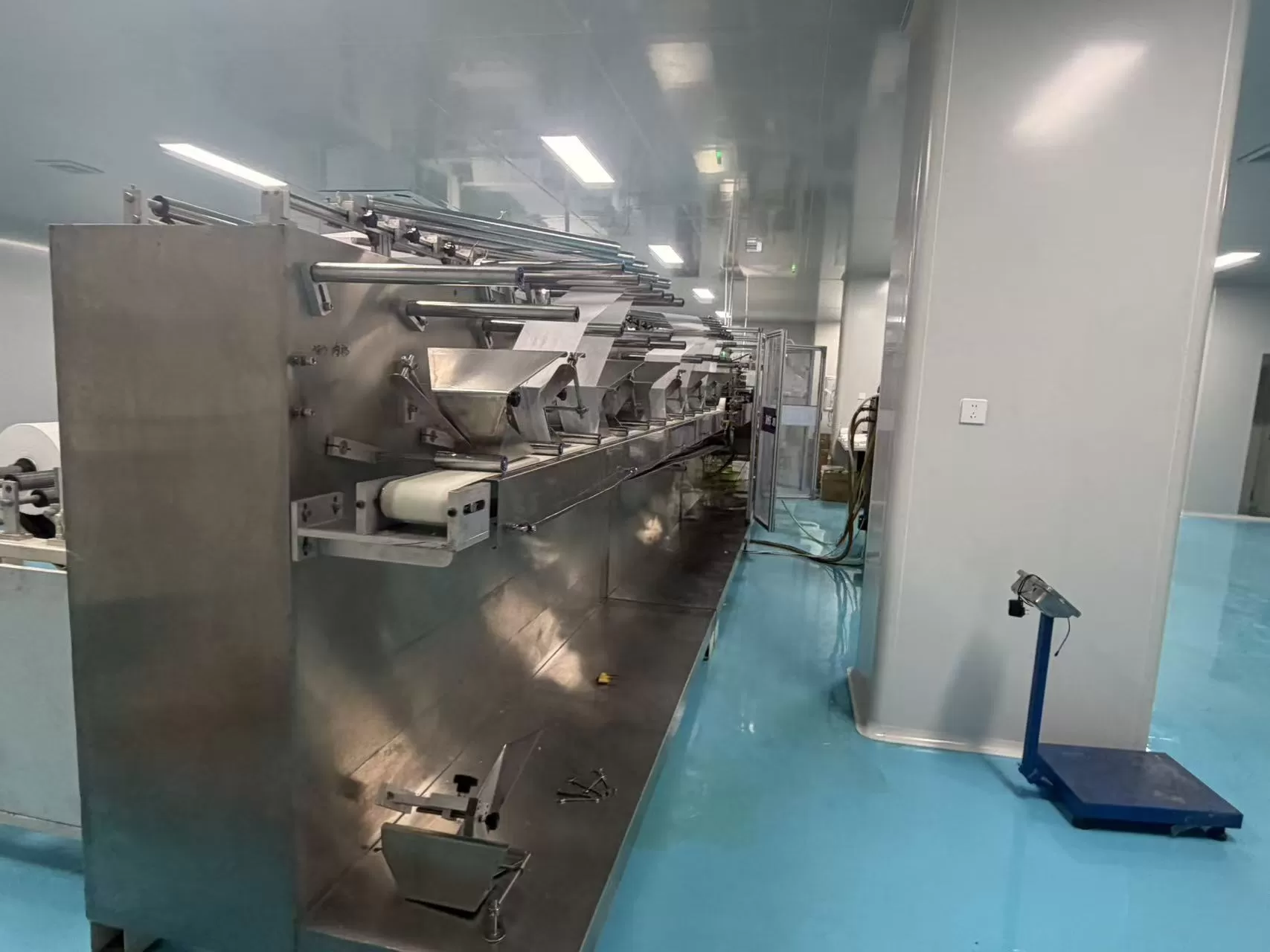

Condition: Excellent, well-maintained. Previously operated in a certified cleanroom environment. Ready for immediate deployment.
Year of Manufacture: 2019
1. Finished Product Specifications
Attribute | Specification |
|---|---|
Product Type | Pop-up Wet Wipes (e.g., Baby Wipes, Makeup Remover Wipes, Personal Care Wipes, Disinfectant Wipes) |
Wipes Count Per Pack | 10 - 200 counts (Servo controlled, easily and quickly adjustable via HMI) |
Unfolded Wipe Size | Length: 150-220 mm; Width: 150-250 mm (Adjustable with format change parts) |
Folding Type | "Z" Fold, "N" Fold (for continuous pop-up dispensing) |
Packaging Format | Pillow Type Soft Pack with Auto-applied Resealable Label/Sticker Lid |
Liquid Dosing System | PLC controlled online quantitative liquid adding, with a precision of ±5% |
2. Production Capacity & Efficiency
Attribute | Specification |
|---|---|
Stable Production Speed | 40 - 70 packs / minute (depending on wipe count, size, and material) |
Stable Output (in pieces) | Up to 4,800 wipes / minute |
Output per Shift (8 hours) | Approx. 19,200 ~ 33,600 packs |
Raw Material Splicing | Dual-channel unwinding stands for non-stop material changeover, maximizing uptime |
Required Operators | 1-2 operators for the entire line |
3. Utility Requirements & Dimensions
Attribute | Specification |
|---|---|
Applicable Non-woven | Spunlace, Air-through, etc. (Grammage: 35-80 gsm) |
Parent Roll Specs | Width: Max 1300 mm; Diameter: Max 1100 mm |
Power Supply | 380V, 50Hz, 3-Phase |
Total Power | 45 kW |
Compressed Air Supply | Pressure: 0.6 - 0.8 MPa; Consumption: Approx. 1.5 m³/min |
Machine Dimensions (L×W×H) | Approx. 16m × 4m × 2.3m |
Machine Weight | Approx. 18 Tons |
4. Control System & Key Components
Attribute | Specification |
|---|---|
Control System | Integrated PLC Control System (Siemens/Mitsubishi Brand) |
Drive System | Full Servo Drive for key functions ensuring high precision and stability |
Operator Interface | Color Touch Screen (HMI) with intuitive, user-friendly interface |
Main Material | Frame and product-contact parts are made of high-quality Stainless Steel (SUS304) |
