Technical Data Sheet

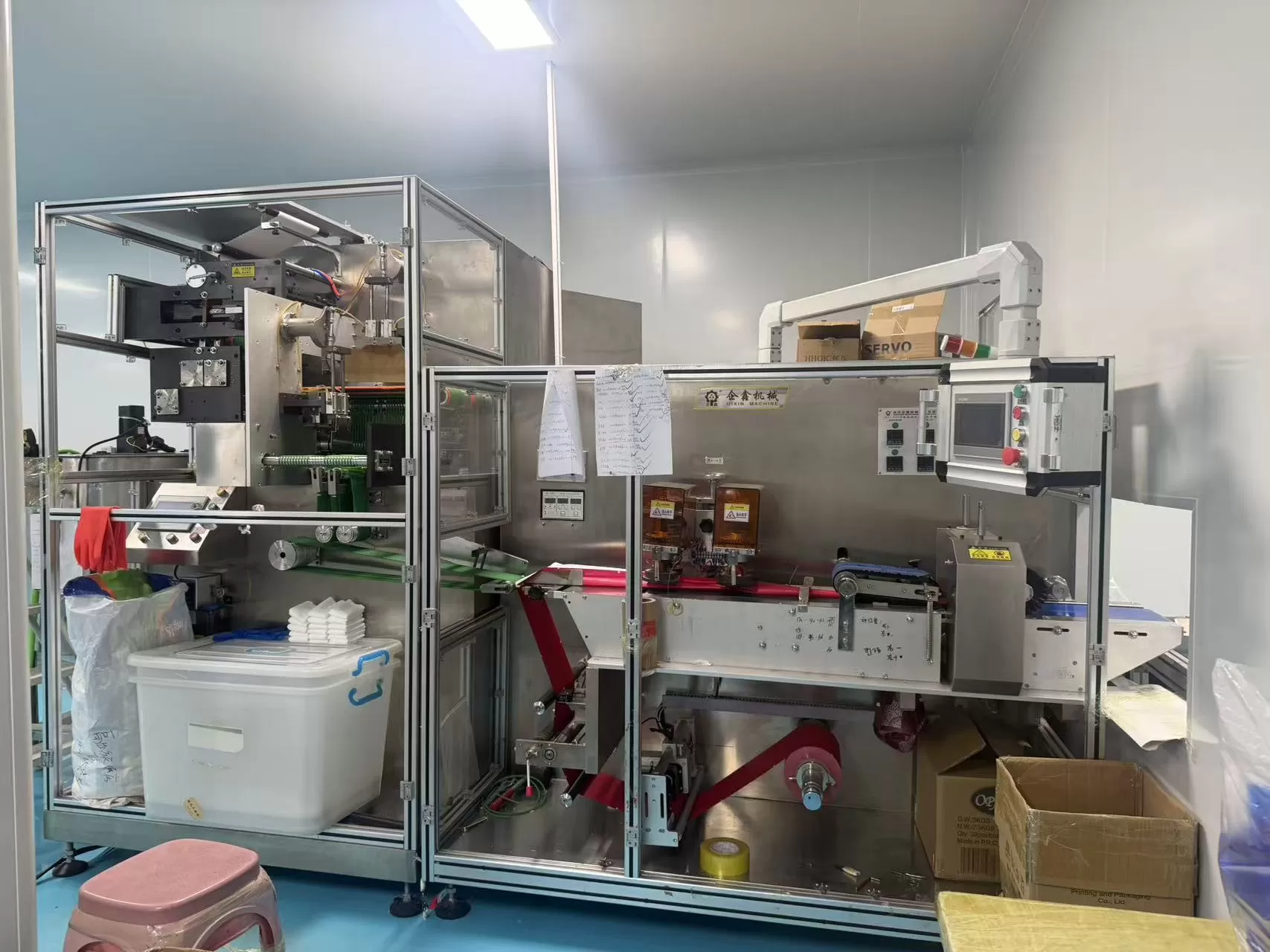

High-Speed Single-Sachet Wet Wipe Packaging Machine
Model: WP-150 High-Flexibility Packer | Condition: Excellent, near-new | YOM: 2020 (Est.)
1. Finished Product Specifications
Attribute | Specification |
|---|---|
Product Type | Single-Piece or Low-Count Wet Wipes in a 4-Side Seal Sachet. Ideal for disinfectant wipes, makeup removers, lens cleaners, restaurant wipes, etc. |
Wipes Count Per Sachet | 1 - 10 pieces (Easily adjustable via HMI) |
Applicable Wipe Size (Unfolded) | Length: 120-260 mm; Width: 120-260 mm (Dependent on folding method) |
Finished Sachet Size | Length: 80-200 mm; Width: 40-100 mm (Adjustable) |
Feeding Method | Manual feeding of pre-folded wipe stacks, or connectable to an upstream folding unit for full automation. |
Liquid Dosing System | Online precision liquid dosing station. |
Packaging Film Material | Various heat-sealable laminates, e.g., PET/PE, PET/AL/PE, Paper/PE. |
Coding Function | Integrated Thermal Transfer Overprinter (TTO) for printing date, batch numbers, and logos. |
2. Production & Control System
Attribute | Specification |
|---|---|
Stable Production Speed | 80 - 150 sachets / minute (Varies with sachet size and wipe count) |
Output per Shift (8 hours) | Approx. 38,400 to 72,000 sachets |
Control System | Integrated PLC Control System for reliable automation. |
Drive System | Full Servo Motor Drive for key functions (film pulling, sealing, cutting), ensuring high precision and operational stability. |
Operator Interface | Color Touch Screen (HMI) with an intuitive, user-friendly interface. |
Required Operators | 1 operator for monitoring and material loading. |
3. Machine & Utility Specifications
Attribute | Specification |
|---|---|
Power Supply | 380V, 50Hz, 3-Phase (Can be adapted upon request) |
Total Power | Approx. 8 kW |
Compressed Air | Pressure: 0.6 - 0.8 MPa; Consumption: Approx. 0.5 m³/min |
Machine Dimensions (L×W×H) | Approx. 4.0m × 1.5m × 2.1m – Extremely Compact Footprint |
Machine Weight | Approx. 1.8 Tons |
Construction | Frame constructed from industrial aluminum profile; Product contact parts made of SUS304 stainless steel. |
