Technical Data Sheet

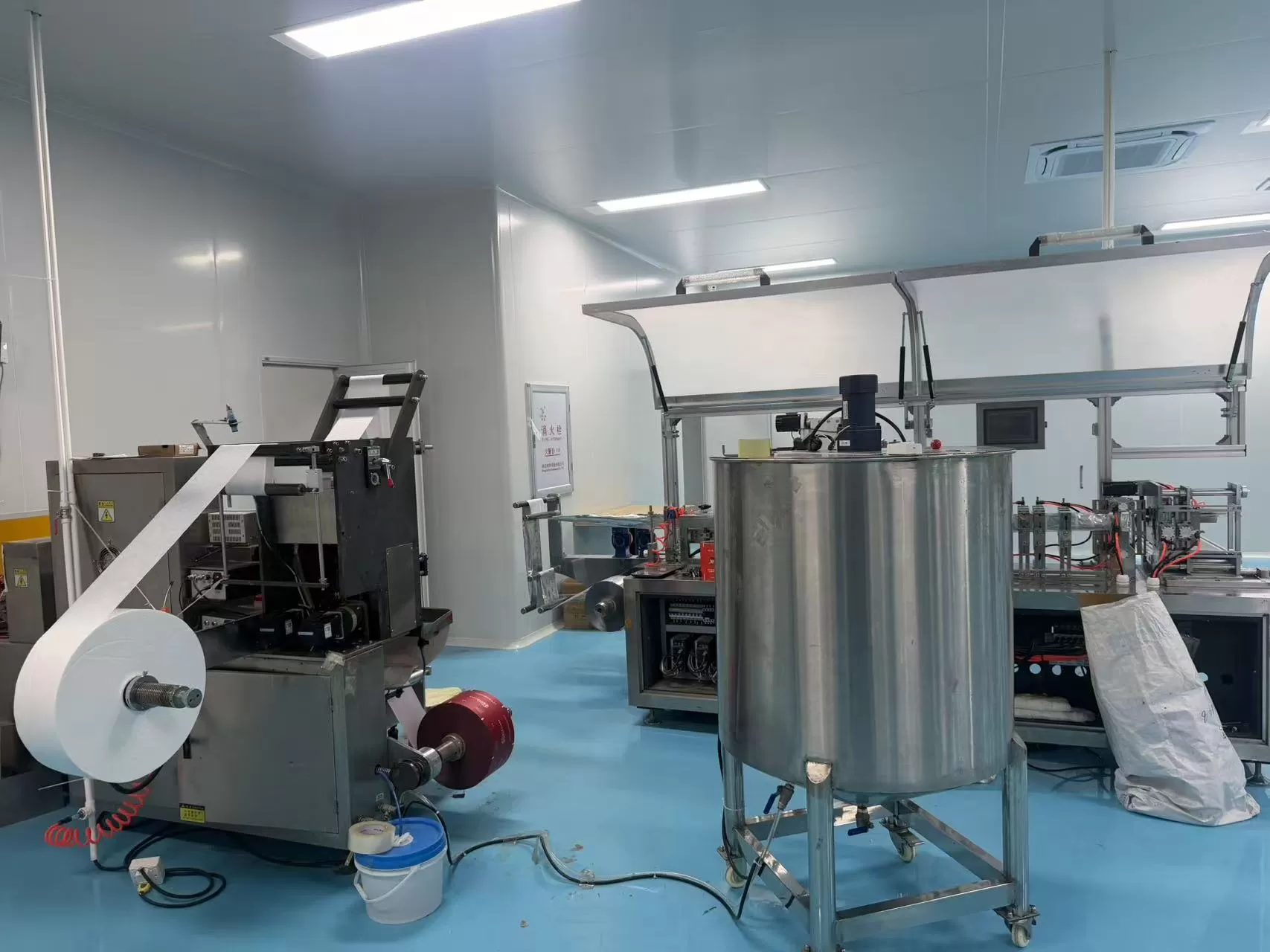

Full-Automatic Single-Sachet Wet Wipe Production Line (Pillow-Pack Type)
Model: SPW-120 Series | Condition: Excellent, well-maintained | YOM: 2019-2021 (Est.)
1. Integrated Production Process
This machine offers a complete "raw material to finished product" solution, automating the entire manufacturing process in one compact and efficient unit.
Raw Material Loading & Folding: Automatically feeds from a non-woven fabric roll and folds the material to the specified size.
Online Liquid Dosing: A precision pump system applies the liquid formula evenly and accurately onto the folded fabric.
Automatic Cutting: The continuously fed, moistened fabric is precisely cut into individual wipes.
Feeding & Film Forming: The cut wipe is transferred and inserted into a tubular film, which is formed from a roll of packaging material by a former.
Sealing & Cutting (Pillow Pack): The machine performs a longitudinal back seal, followed by transverse end seals and cutting, to create a fully sealed, classic pillow-pack sachet.
2. Production Capacity
Attribute | Specification |
|---|---|
Stable Production Speed (Single Unit) | 80 - 120 sachets/minute (depending on product size and materials) |
Output per Shift (8 hours, Single Unit) | Approx. 38,400 to 57,600 sachets |
Control System | Integrated PLC control with a user-friendly HMI Touch Screen interface. |
Required Operators | 1 operator can supervise 2-4 machines, focusing on material replenishment and quality checks. |
3. Product & Material Specifications
Attribute | Specification |
|---|---|
Finished Product Type | Single-Piece Wet Wipe in a Back Seal / Pillow Pack Sachet |
Applicable Non-woven Fabric | Spunlace, thermal bond, air-through non-woven fabrics of various GSM. |
Applicable Packaging Film | Heat-sealable laminated films such as PET/PE, PET/AL/PE, OPP/CPP. |
Wipe Size (Unfolded, Approx.) | Length: 140-220 mm; Width: 140-220 mm (Adjustable) |
Finished Sachet Size (Approx.) | Length: 70-150 mm; Width: 50-80 mm (Adjustable) |
4. Utility & Dimensions
Attribute | Specification |
|---|---|
Power Supply | 380V, 50Hz, 3-Phase (Adaptable for different regional standards) |
Total Power | Approx. 6 kW |
Compressed Air Requirement | Pressure: 0.6 - 0.8 MPa |
Machine Dimensions (L×W×H) | Approx. 3.5m × 1.2m × 1.8m |
Machine Weight | Approx. 1.5 Tons |
