JJMRJ0430

This is a highly integrated Vertical Form Fill Seal (VFFS) machine, custom-engineered for small-count wet wipe packs. It fully automates the production from raw materials to ready-for-shelf products.

Basic Info

CATEGORY: Used Wet Wipe Machine
This is a highly integrated Vertical Form Fill Seal (VFFS) machine, custom-engineered for small-count wet wipe packs. It fully automates the production from raw materials to ready-for-shelf products.

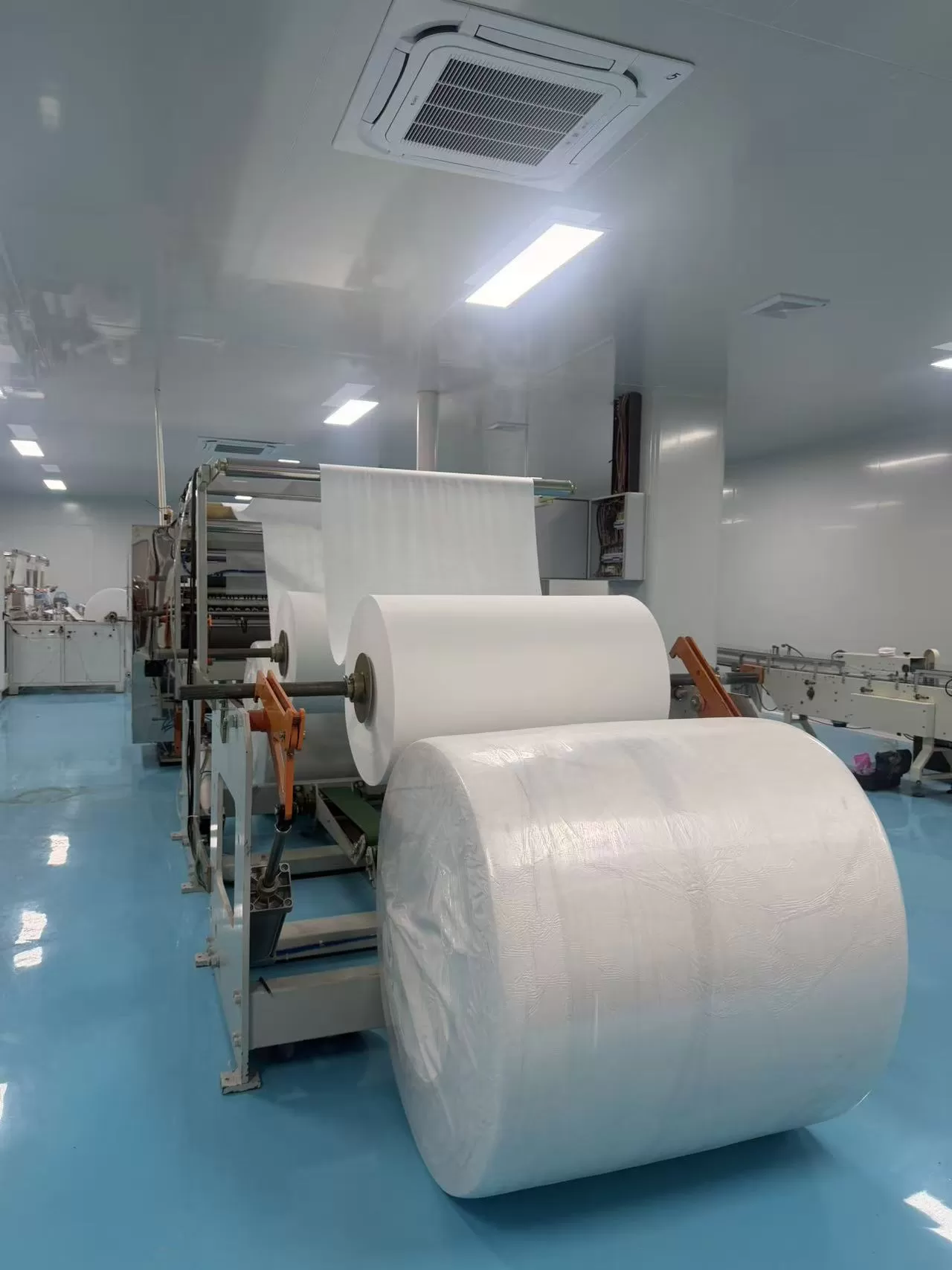

1.Fabric Feeding & Slitting: A large roll of non-woven fabric is fed and slit into multiple lanes.
2.Folding & Stacking: Each lane of fabric is folded and then precisely cut and stacked by a servo-controlled system to achieve the exact piece count (1 to 10 pieces).
3.Liquid Impregnation: The stacked wipes are dosed with a precise amount of liquid formula from the adjacent stainless steel mixing tank.
4.Sachet Forming & Sealing: The moistened stack is dropped into a V-folded packaging film. The machine then performs vertical side sealing and horizontal top/bottom sealing, creating a secure four-side sealed flat pack.

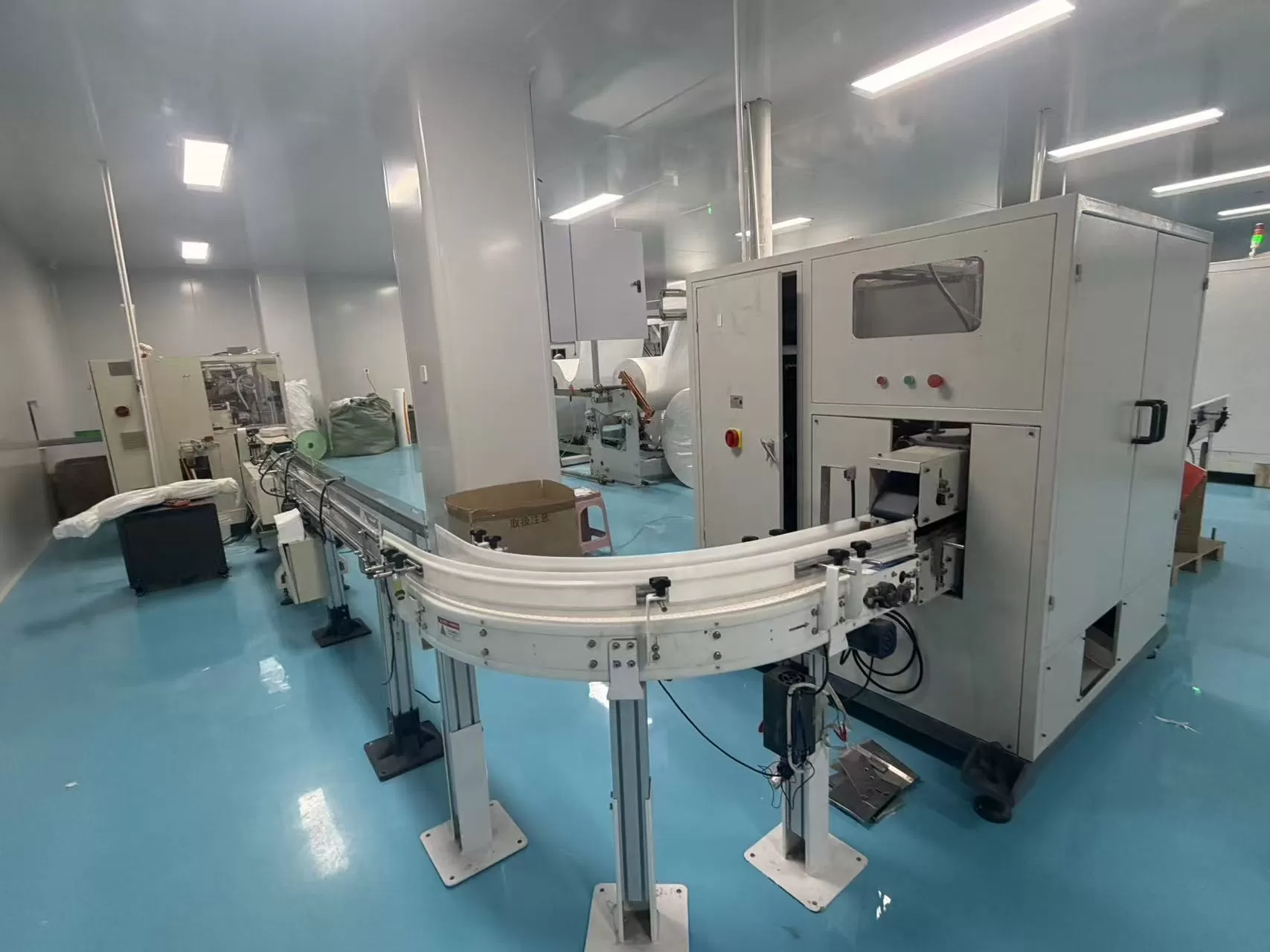

5.Final Cut & Discharge: A cutter separates the individual packs, which are then discharged via a conveyor belt for collection.

Detailed Info

Technical Data Sheet

Full-Automatic Small-Count (1-10 pcs) Wet Wipe Production Line (Four-Side Seal)

Model: MPW-60 Series (Multi-Piece Wipes) | Condition: Excellent, production-ready | YOM: 2019-2022 (Est.)

1. Integrated Production Process (VFFS Logic)

This is a highly integrated Vertical Form Fill Seal (VFFS) machine, custom-engineered for small-count wet wipe packs. It fully automates the production from raw materials to ready-for-shelf products.

Fabric Feeding & Slitting: A large roll of non-woven fabric is fed and slit into multiple lanes.
Folding & Stacking: Each lane of fabric is folded and then precisely cut and stacked by a servo-controlled system to achieve the exact piece count (1 to 10 pieces).
Liquid Impregnation: The stacked wipes are dosed with a precise amount of liquid formula from the adjacent stainless steel mixing tank.
Sachet Forming & Sealing: The moistened stack is dropped into a V-folded packaging film. The machine then performs vertical side sealing and horizontal top/bottom sealing, creating a secure four-side sealed flat pack.
Final Cut & Discharge: A cutter separates the individual packs, which are then discharged via a conveyor belt for collection.

2. Production Capacity

Attribute	Specification
Key Feature: Adjustable Piece Count	1 to 10 pieces per pack (Digitally set on HMI)
Stable Production Speed	30 - 60 packs/minute (Note: Speed is dependent on the piece count per pack; lower counts allow for higher speeds).
Control System	Integrated PLC control with a multi-language HMI Touch Screen. Servo-driven for high accuracy.
Required Operators	1 operator can supervise 1-2 machines.

3. Product & Material Specifications

Attribute	Specification
Finished Product Type	Multi-piece Wet Wipes (1-10 pcs) in a Four-Side Seal Flat Sachet. Ideal for travel packs, cosmetic remover wipes, promotional samples, etc.
Applicable Non-woven Fabric	Spunlace, thermal bond, air-through non-woven fabrics.
Applicable Packaging Film	Heat-sealable laminated films (e.g., PET/PE, PET/AL/PE).
Wipe Size (Unfolded, Approx.)	Length: 120-200 mm; Width: 150-220 mm (Adjustable)
Finished Pack Size (Approx.)	Length: 80-150 mm; Width: 60-100 mm (Adjustable)

4. Utility & Dimensions

Attribute	Specification
Power Supply	380V, 50Hz, 3-Phase (Customizable)
Total Power	Approx. 7 kW
Compressed Air Requirement	Pressure: 0.6 - 0.8 MPa
Machine Dimensions (L×W×H)	Approx. 2.8m × 1.5m × 2.2m (Vertical compact design)
Machine Weight	Approx. 1.8 Tons
